Variable Frequency Oil Free Screw Compressor Water Lubrication

  • 1
  • 2
  • 3

Model Number : CMBV

MOQ : 1 set

Price : Contact Us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Standard Packaging

Brand Name : Custom

Place of Origin : China

Supply Ability : 200 sets per month

Delivery Time : 20-60 working day

Frequency : Variable Frequency

Type : Oil-free

Product Name : Screw Air Compressor

Model : CMBV

Feature : Energy saving

Exhaust pressure : Accurate

Mute : Yes

Voltage : Can be Customized

Condition : New

Configuration : Stationary

Contact Now

Variable Frequency Oil-free Screw Air Compressor of Water Lubrication

Why use a variable frequency screw compressor?
1. Energy saving, in many occasions, the change of air consumption is very big, variable frequency screw compressor according to the change of air consumption, automatically adjust the compressor variable, to avoid the replacement of the load, unloading, so as to achieve the purpose of saving electricity.
2. Accurate exhaust pressure. Within the flow range, the pressure fluctuation range of CM/PV variable frequency water-lubricated screw compressor can reach 0.01MPa.
3. Avoid current omen, CM/PV converter start is more stable than the commonly known soft start, completely avoid current peak, no impact on the power grid.
4.CM/PV series variable frequency water-lubricated oil-free screw compressor has the function of variable frequency switching. According to the size of gas free choice, to achieve the minimum cost of electricity.
C M screw compressor adopts frequency conversion motor, with wide speed range, strong lower torque reduction and good stability.
CM screw compressor adopts special inverter compressor, high reliability, continuous long.

Permanent magnet variable frequency water-lubricated oil-free screw air compressor technical parameters

Model
Maximun work pressure		 FAD Motor power Noise Weight Pipe diameterds of cooling water inlet and outlet Quantity of cooling water Dimension

Air

outlet
MPa Psi m³/min cfm kW HP dB(A) kg Water entering32℃ L×W×H
T/h mm
CM08PVF 0.8 116 0.45-1.15 16-41 7.5 10 58 630 DN25 2 1550×775×1445 1ʺ
1 145 0.41-1.02 14-36 500 1350×774×1150
CM11PVF 0.8 116 0.62-1.55 22-55 11 15 58 650 DN25 2.5 1550×775×1445 1ʺ
1 145 0.53-1.32 19-47 520 1350×774×1150
1.25 181 0.48-1.02 17-36
CM15PVF 0.8 116 0.96-2.40 34-85 15 20 63 900 DN25 3.5 1900×1000×1635 1ʺ
1 145 0.85-2.12 30-75
750 1680×1000×1335
1.25 181 0.64-1.61 23-57
CM18PVF 0.8 116 1.24-3.10 44-109 18.5 25 65 970 DN25 4 1900×1000×1635 1ʺ
1 145 1.05-2.62 37-93
820 1680×1000×1335
1.25 181 0.85-2.13 30-75
CM22PVF 0.8 116 1.40-3.50 49-124 22 30 65 1000 DN25 5 1900×1000×1635 1ʺ
1 145 1.25-3.13 44-111
850 1680×1000×1335
1.25 181 1.04-2.61 37-92
CM30PVF 0.8 116 2.00-5.00 71-177 30 40 66 1200 DN40 7 1950×1050×1780 1 1/2ʺ
1 145 1.68-4.20 59-148
1300 1900×1050×1430
1.25 181 1.52-3.18 54-112
CM37PVF 0.8 116 2.44-6.10 86-215 37 50 67 1230 DN40 9 1950×1050×1780 1 1/2ʺ
1 145 2.09-5.22 74-184
1320 1900×1050×1430
1.25 181 1.92-4.81 68-170
CM45PVF 0.8 116 3.12-7.80 110-275 45 60 68 1930 DN40 10 3040×1280×1800 2ʺ
1 145 2.45-6.13 87-216
1430 2200×1350×1530
1.25 181 2.26-5.65 80-200
CM55PVF 0.8 116 3.84-9.60 136-339 55 75 70 2050 DN40 12 3040×1280×1800 2ʺ
1 145 3.44-8.60 121-304
1550 2200×1350×1530
1.25 181 2.97-7.42 105-262
CM75PVF 0.8 116 5.16-12.90 182-455 75 100 73 2450 DN40 18 3040×1280×1800 2ʺ
1 145 4.57-11.42 161-403
1790 2200×1350×1530
1.25 181 3.93-9.83 139-347
CM90PV 0.8 116 6.52-16.30 230-576 90 125 73 2160 DN40 20 2500×1400×1580 2 1/2ʺ
1 145 5.81-14.52 205-513
1.25 181 4.92-12.30 174-434
CM110PV 0.8 116 7.76-19.40 274-685 110 150 78 2270 DN40 24 2500×1400×1580 2 1/2ʺ
1 145 6.76-16.90 239-597
1.25 181 6.04-15.10 213-533
CM132PV 0.8 116 8.88-22.21 314-784 132 180 78 2350 DN50 30 2500×1400×1580 2 1/2ʺ
1 145 8.15-20.38 288-720
1.25 181 7.31-18.29 258-646
CM160PV 0.8 116 11.54-28.85 407-1019 160 220 78 3720 DN80 35 3100×1700×2090 DN100
1 145 9.81-24.52 346-866
1.25 181 8.87-22.17 313-783
CM200PV 0.8 116 14.65-36.63 517-1293 200 270 78 3750 DN80 43 3100×1700×2090 DN100
1 145 13.10-32.70 463-1155
1.25 181 11.09-27.72 392-979
CM250PV 0.8 116 17.15-42.88 606-1514 250 340 78 3900 DN80 53 3100×1700×2090 DN100
1 145 15.60-39.00 551-1377
1.25 181 13.87-34.64 490-1223
CM320PV 0.8 116 23.64-59.10 835-2087 320 430 80 4850 DN100 60 3600×2800×2000 DN125
1 145 21.40-53.50 756-1889
1.25 181 19.30-48.25 681-1704

Our products pictures:

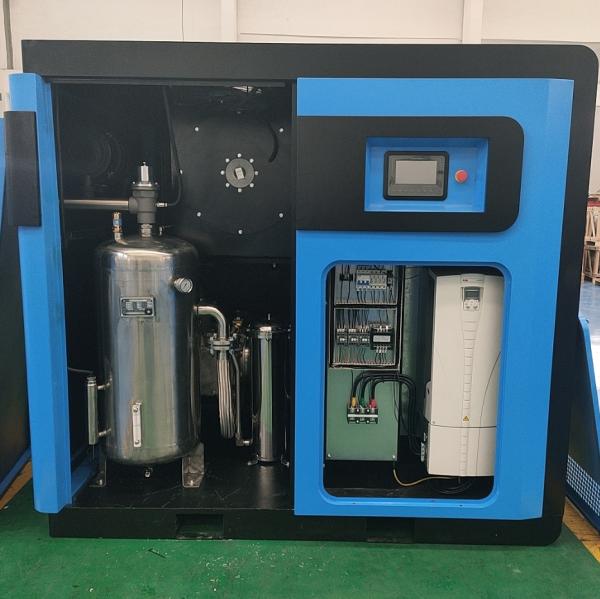

Variable Frequency Oil Free Screw Compressor Water Lubrication

Variable Frequency Oil Free Screw Compressor Water Lubrication

Our factory:

Variable Frequency Oil Free Screw Compressor Water Lubrication
